Exporting models

This guide walks through the full end-to-end process — from sourcing a model all the way to viewing your custom export running in the game.

1. Blender setup

Before following this guide, make sure Blender and the addon are installed. The home page covers both steps:

• Installing Blender
• Installing the plugin

Once that's done, return here and continue with step 2.

2. Getting a model

The exporter works with any Blender scene that has a single armature with meshes parented to it. There are three common ways to end up with one:

Option A — Edit an existing game model

The simplest path. Follow the importer guide to load a Pokémon Colosseum or XD model, then edit it directly in Blender (re-texture, re-pose, retopologise, whatever you like). All the metadata the exporter needs (animation slots, shiny params, body map) is already set on the armature, so you can skip most of the prep work later.

Option B — Import a model from another source

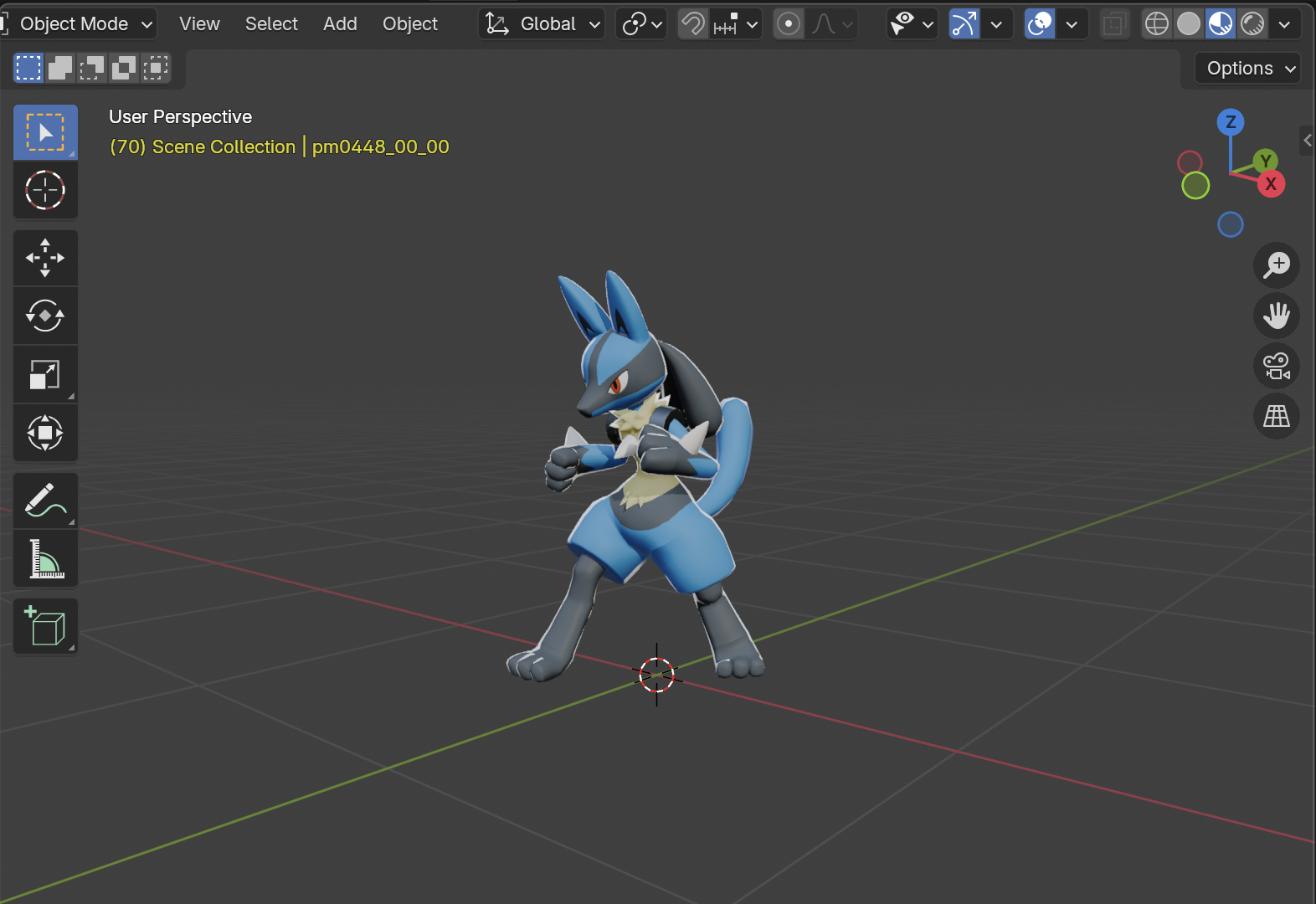

This can be other Pokémon games, other game series, or models from anywhere else. Many modern Pokémon titles (Sun/Moon onwards, Sword/Shield, Legends Arceus, Scarlet/Violet, etc.) have community-maintained rips available as .glb or .fbx files, and the same formats are used widely outside Pokémon too. Blender opens these natively — use File → Import → glTF 2.0 (.glb/.gltf) or File → Import → FBX (.fbx).

Rips from other games arrive without any of the metadata the exporter expects. The preparation step below adds it automatically.

Option C — Build a model from scratch

Fully custom models work too. The constraints are the same as for any rip: you need an armature, meshes parented to it, materials with image textures, and a face count well under the game's limits. See Checking compatibility for the full feature list.

3. Setting up the scene

The exporter writes the entire Blender scene to the output file (with one narrow exception: hidden cameras are skipped). That means before you export, the scene needs to contain only the things you want in the game model. This step is about cleaning up.

Step 1 — Delete the default cube, light, and camera

When you opened Blender, it created a default scene with a Cube, a Light, and a Camera. If you're working with a freshly imported model, these may or may not still be around — either way, delete them.

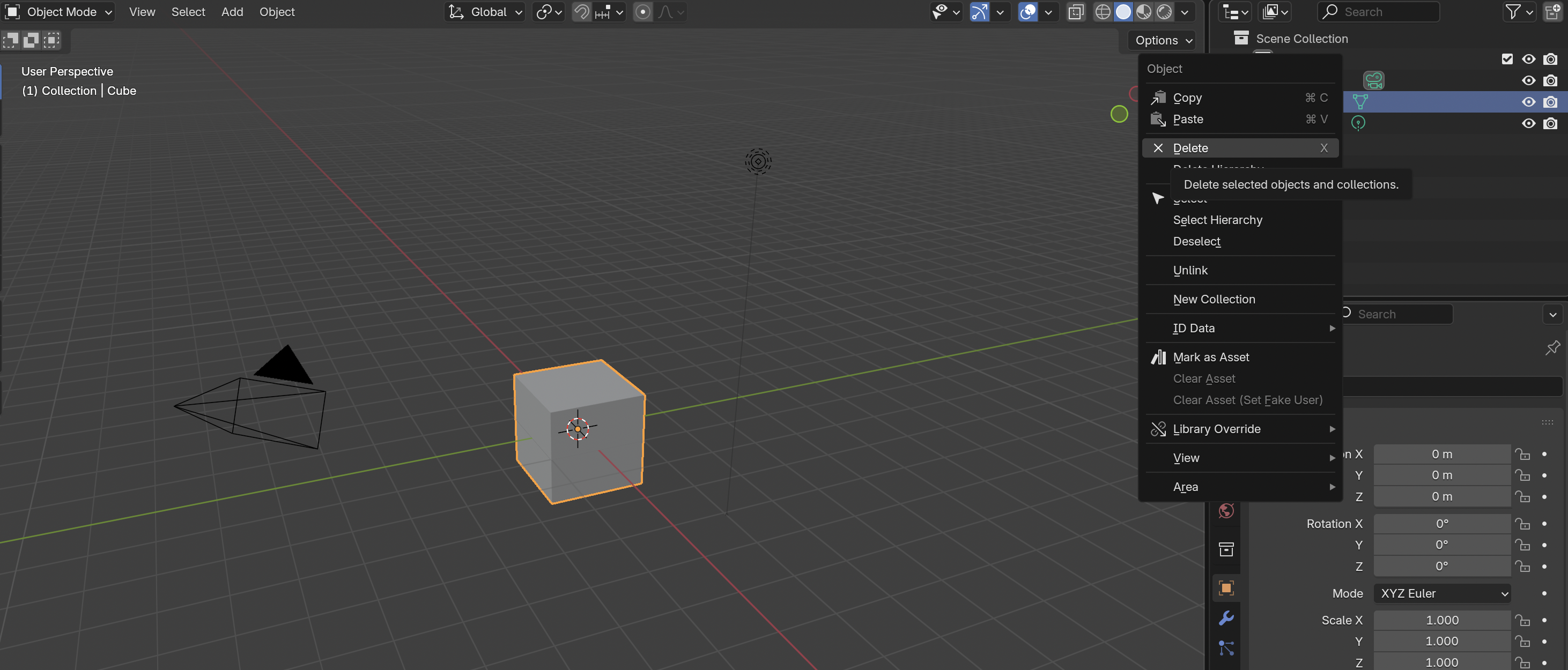

In the Outliner (top-right panel), click on each unwanted object and press X in the viewport (or Delete on the keyboard) to remove it. Alternatively, right-click the object and choose Delete from the drop-down menu. Confirm the deletion if Blender asks.

Step 2 — Confirm the scene structure

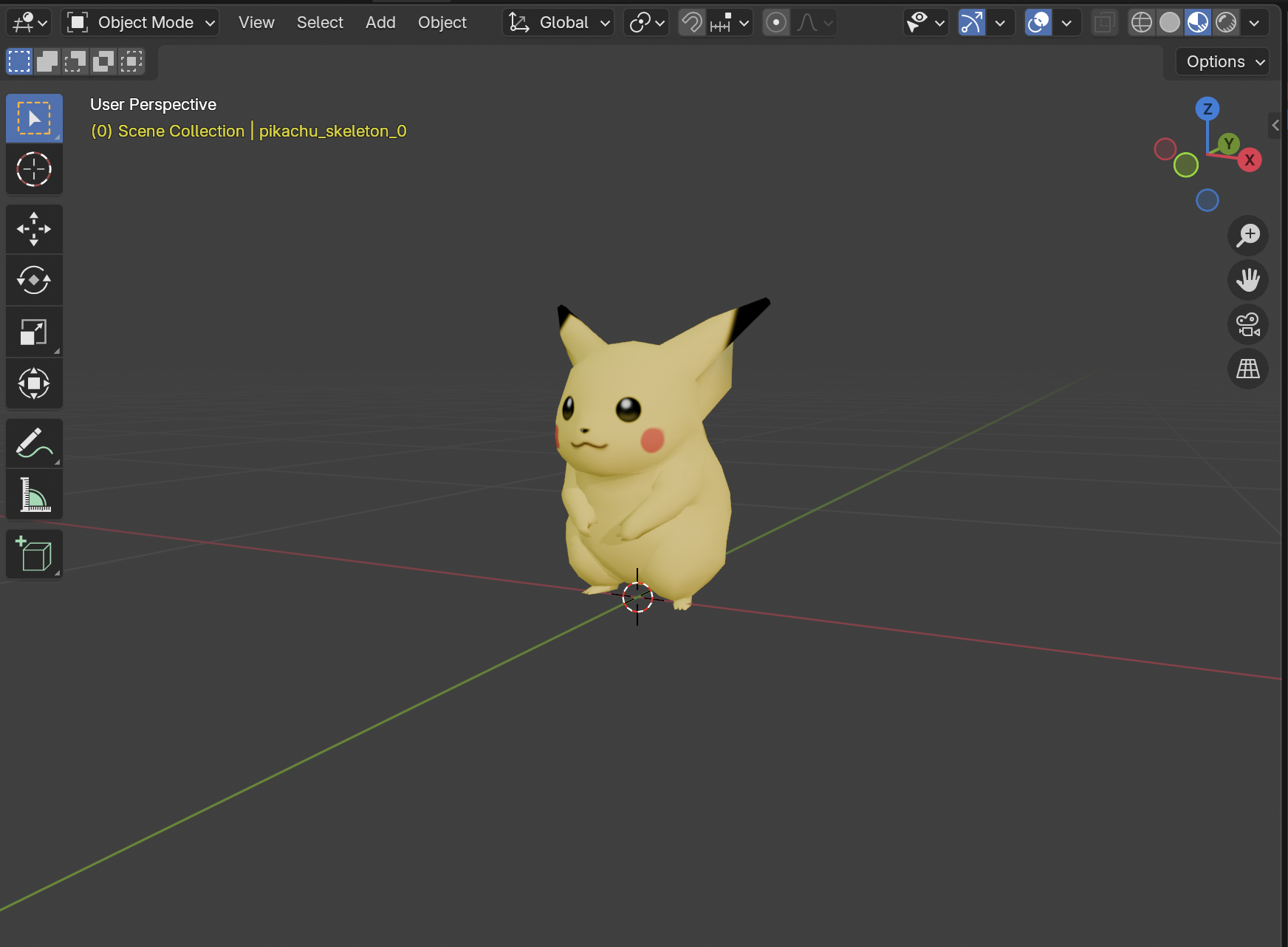

Import the model as described in section 2 and make any desired modifications.

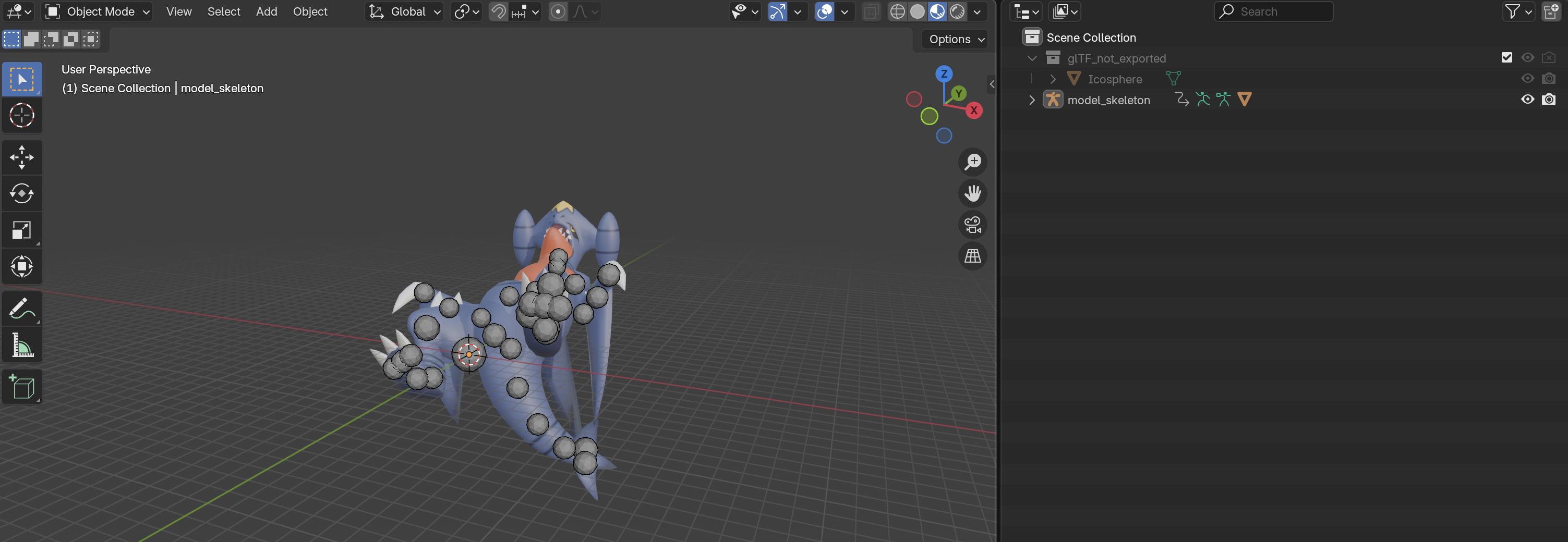

What should remain is one Armature with the model's meshes parented to it. In the Outliner, the armature is the entry with a stick-figure icon; meshes appear nested underneath it (click the triangle to the left of the armature to expand).

Step 3 — Make sure the model faces the right way

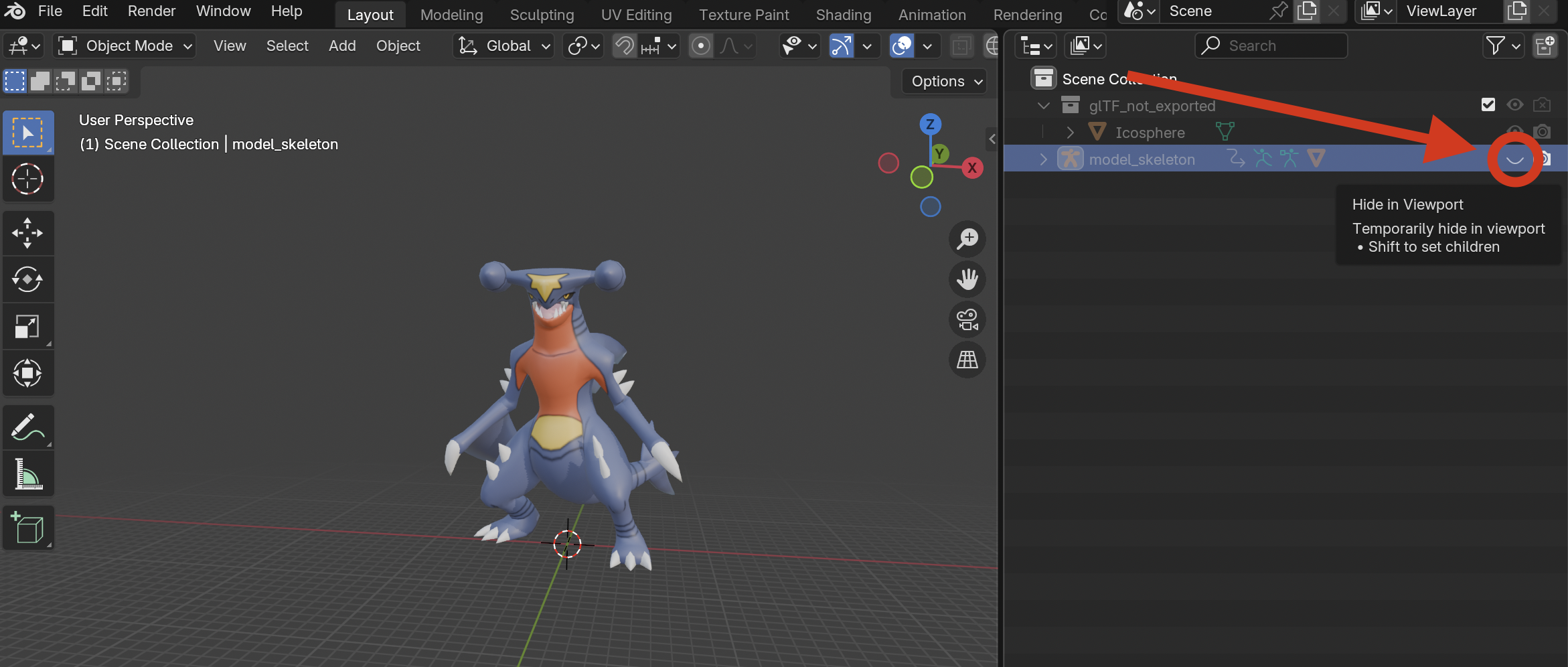

In Blender, your model should be standing upright (Z is up) and facing along the negative Y axis (toward the default camera position when looking from front). If the model is lying on its side or facing backwards, rotate the armature to fix it.

It's common for other software to use the Y axis as the up axis. If the model is lying on the ground, then it's most likely that a rotation of 90 degrees around the X axis will convert it to Blender's Z-up coordinates: select the armature, press R, X, type 90, and press Enter.

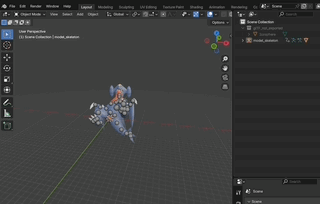

To rotate more generally: select the armature, press R, then optionally an axis key (X, Y, or Z), type the angle in degrees (e.g. 90), and press Enter.

Step 4 — Scale the model to match real-world dimensions

Blender measures things in metres. The plugin expects the model to be sized like the real thing — for Pokémon, that's the species' official height. A scale mismatch shows up in-game as a Pokémon that's tiny or enormous compared to the rest of the cast.

1. Click the armature in the viewport.
2. Press N to open the sidebar on the right of the viewport.

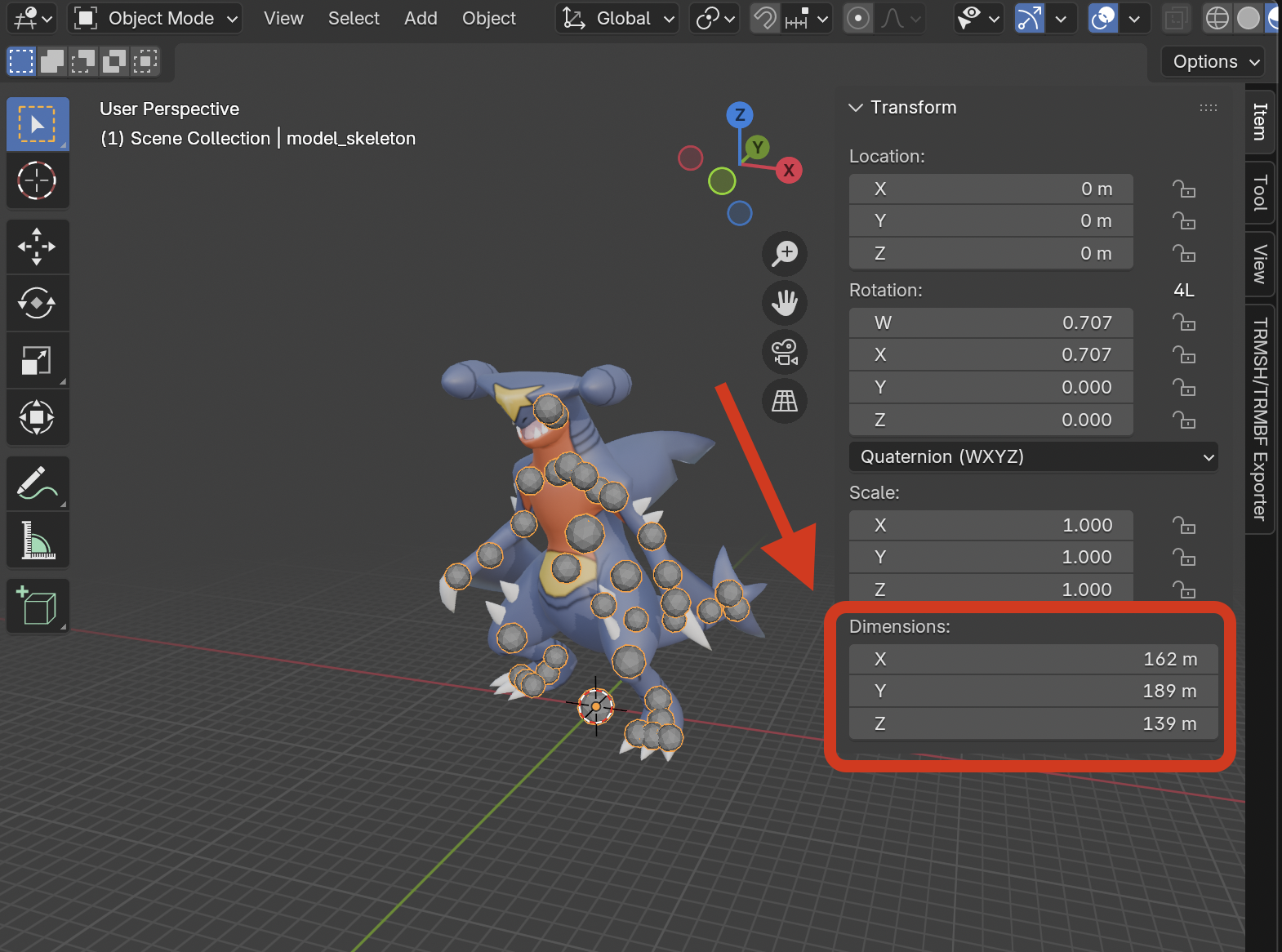

3. Switch to the Item tab. The Dimensions section shows the model's current X / Y / Z size in metres.

Look up the Pokémon's official height (Bulbapedia is a good source). For most Pokémon, match the Z dimension (height) to the official metres value. For long serpentine Pokémon like Gyarados or Rayquaza, the official "height" is actually body length — use the Y dimension instead.

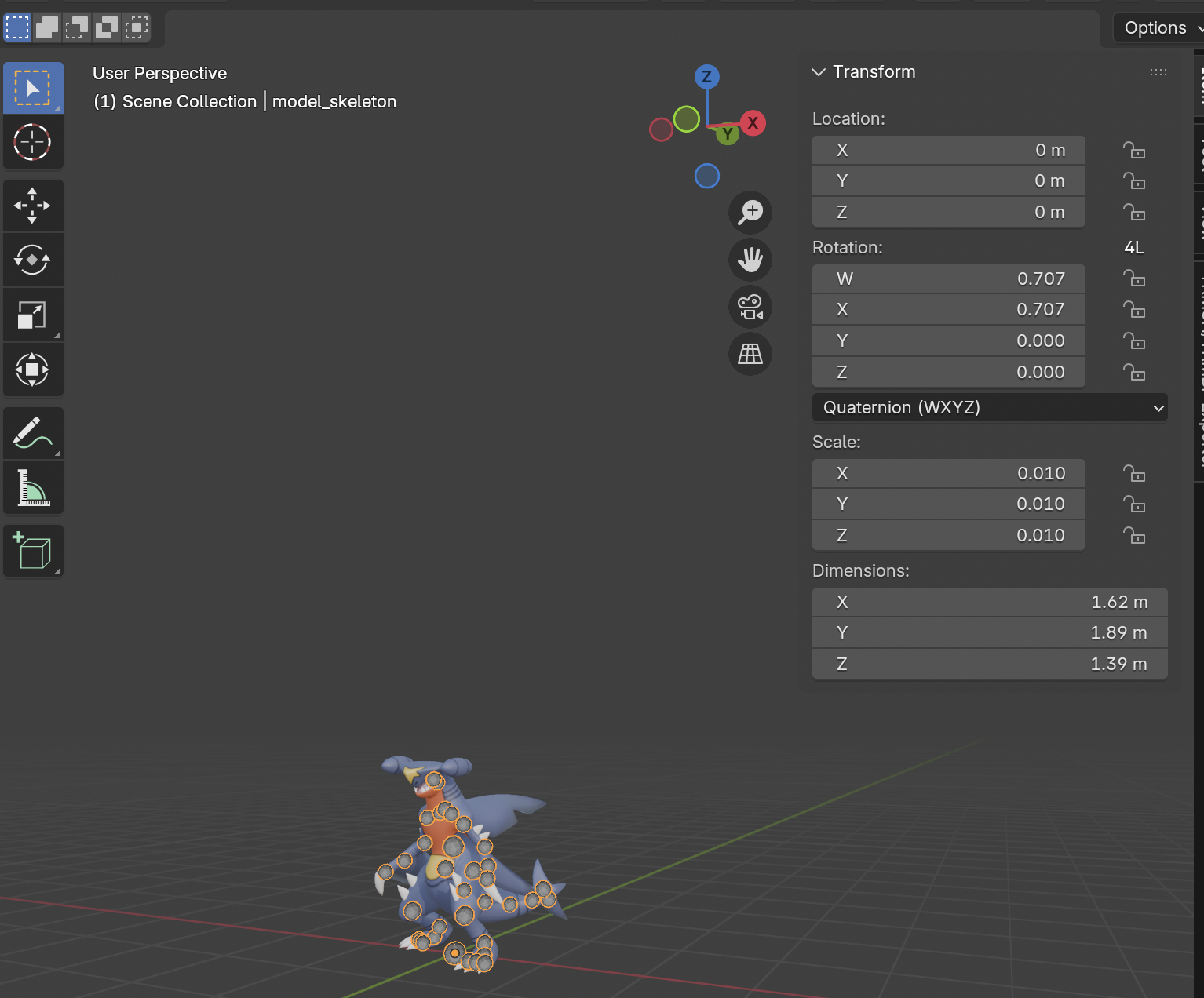

To scale: with the armature selected, press S, type the scale factor (e.g. 0.5 to halve all 3 dimensions at the same time), and press Enter.

4. Checking compatibility

The exporter understands a specific subset of Blender features. Anything outside that subset is either ignored or — for limits like polygon count — can cause the model to fail to load in-game. This section walks through what's supported, organised the way Blender itself groups things.

Legend: ✓ Supported ⚠ Partial ✗ Not supported

Scene objects

What kinds of Blender objects the exporter pays attention to.

Mesh data

The geometry, UVs, and color information attached to your meshes.

Skinning

How meshes attach to bones for animation.

Materials

The Principled BSDF shader plus image textures cover almost everything the exporter can handle. Procedural textures and custom node groups are ignored — bake to image if you need them.

Animations

Constraints

Hardware limits

Even when every feature you use is supported, the GameCube has hard runtime limits the model must stay under. The exporter rejects scenes that violate these (with a clear error message); the preparation script in the next step handles most of them automatically.

5. Preparing the model

The preparation script handles the bulk of the prep work automatically and should be run in all cases. For models you imported through this addon, most of the prep work is already done — but the script should still be run. For models from anywhere else (GLB rips, custom models), it handles much more.

Pick the prep script that matches your output kind:

• scripts/prepare_for_pkx_export.py — when you're exporting a .pkx (Pokémon model container). Includes the PKX-only steps: header metadata, animation slot timings, shiny filter shader nodes, smoke-test actions, and a four-light battle preview.
• scripts/prepare_for_dat_export.py — when you're exporting a bare .dat (maps, scene archives, arbitrary models without a PKX header). Same bake / weight / texture steps, none of the PKX-specific authoring.

Step 1 — Open the Scripting workspace

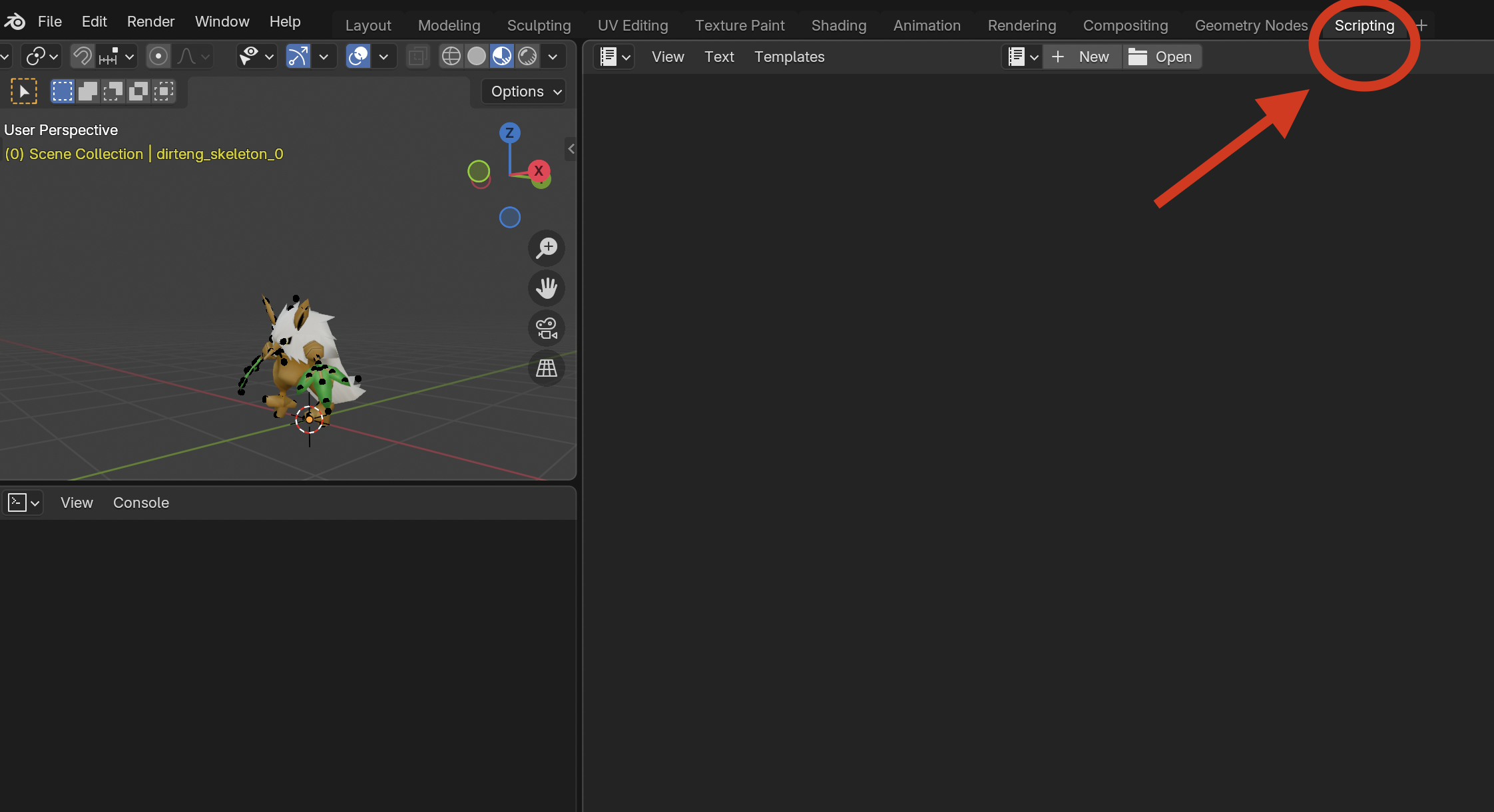

At the top of Blender, click the Scripting tab in the workspace bar. The layout changes to show a text editor, an interactive console, and an info log.

Step 2 — Open the preparation script

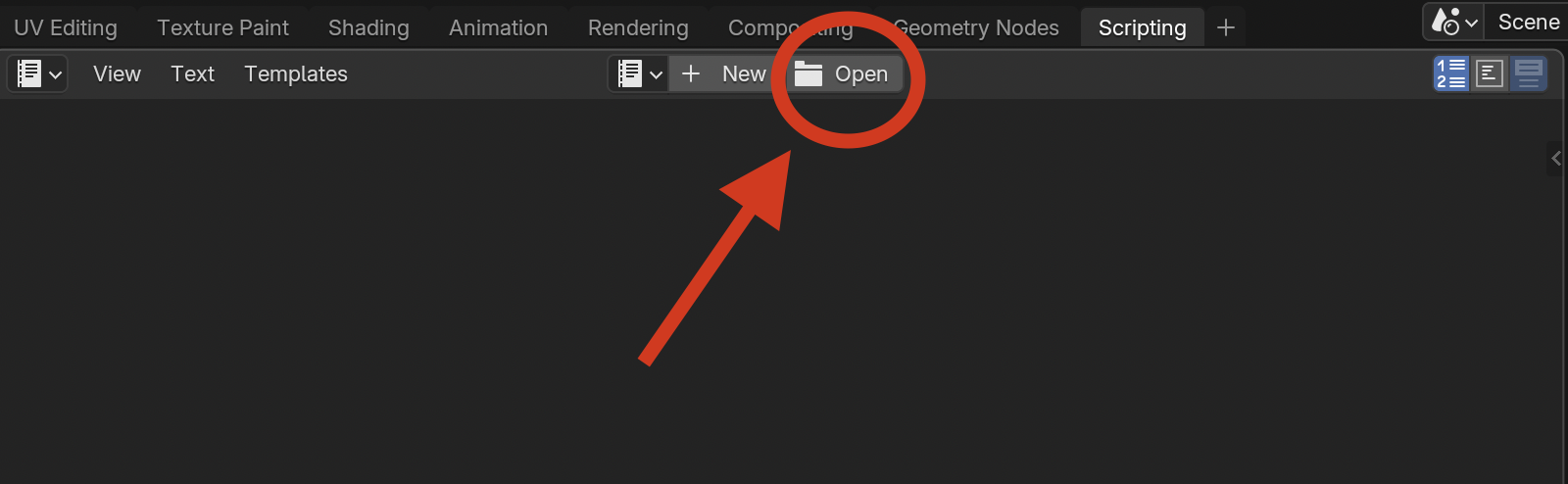

In the text editor at the top of the workspace, click Open and browse to the prep script that matches your output — scripts/prepare_for_pkx_export.py for .pkx or scripts/prepare_for_dat_export.py for bare .dat — inside the plugin's installation folder.

To find the plugin's installation folder:

• macOS: ~/Library/Application Support/Blender/4.5/extensions/user_default/
• Windows: %APPDATA%\Blender Foundation\Blender\4.5\extensions\user_default\
• Linux: ~/.config/blender/4.5/extensions/user_default/

Step 3 — Run the script

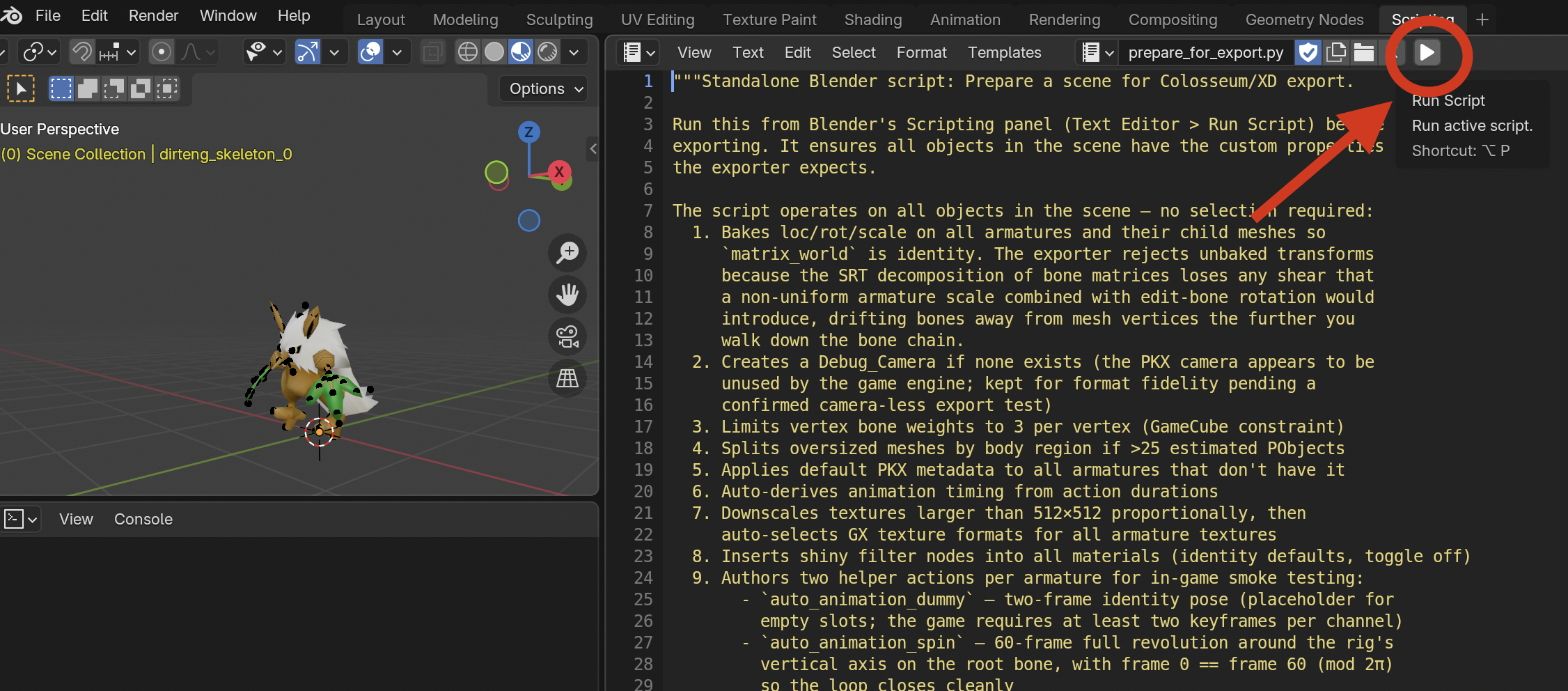

With the script open, click the Run Script button (or press Alt+P with the cursor inside the script). Wait a few seconds — the info log at the bottom will show what it did.

What the script does

• Joins all child meshes of each armature into one mesh — this dramatically reduces the chance of hitting the game's "too many surfaces" limit.
• Caps bone weights at 3 per vertex and rounds weights to 10% steps.
• Adds the 4 battle lights the game expects (one ambient + three sun lights).
• Downscales oversized textures to 512×512 or smaller, then picks the best GameCube texture format for each one.
• Creates a placeholder camera (the game doesn't actually use it).
• Adds PKX metadata to the armature (species ID, animation slots, shiny params, body map) — visible afterward in the PKX Metadata panel on the armature.
• Inserts shiny preview nodes into materials so you can toggle the shiny appearance in Blender.
• Authors two helper actions — an identity pose and a 60-frame spin — useful for smoke-testing the export.

Step 4 — Set the PKX metadata

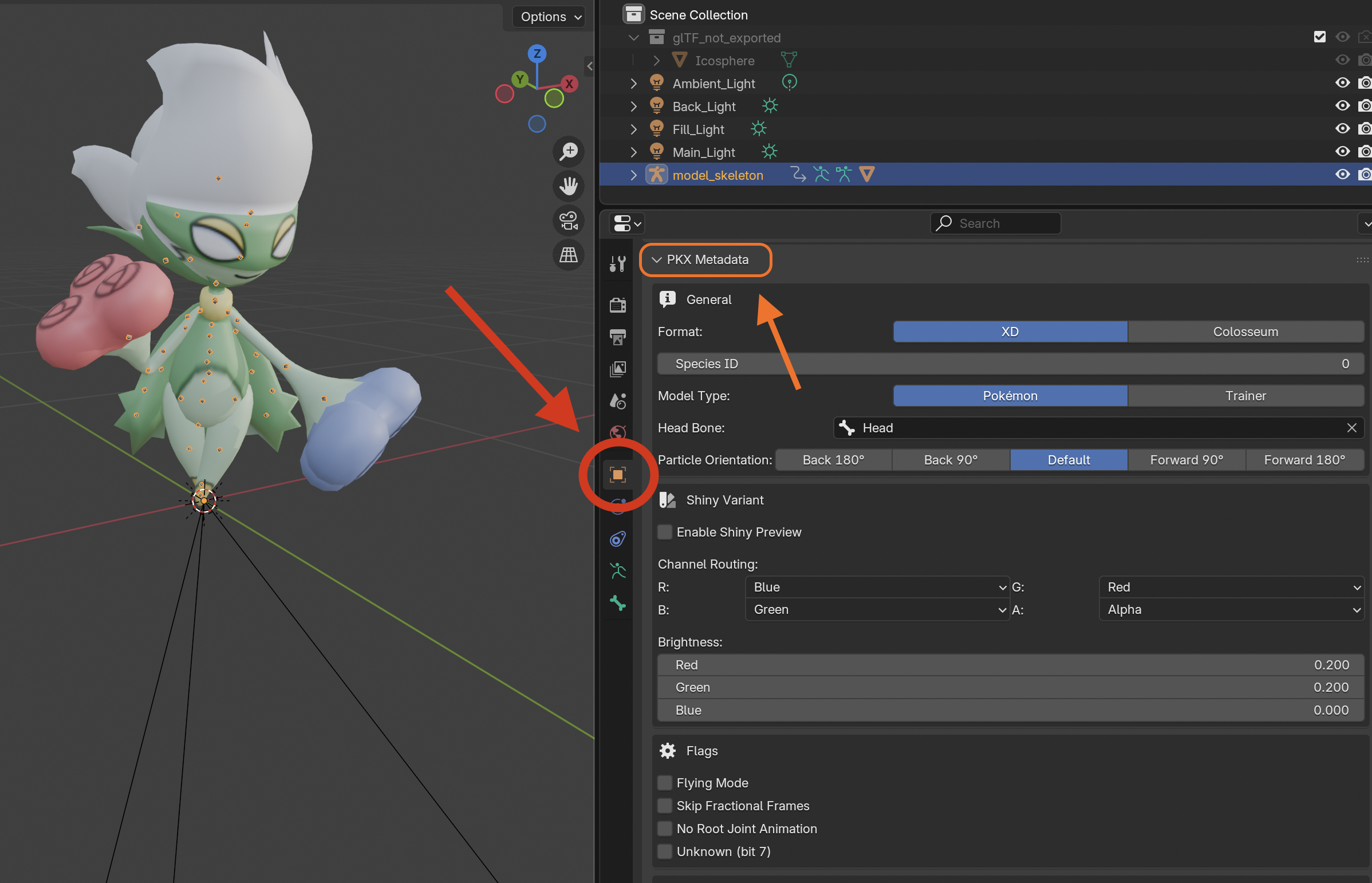

Select the armature and open the Properties editor's Object Properties tab (orange square icon). Scroll down to the PKX Metadata panel.

Key things to set:

• Format — XD or COLOSSEUM, depending on the target game.
• Model Type — POKEMON or TRAINER.
• Head Bone — the bone the camera locks to (auto-detected by name; verify it's correct).
• Animation slots — see below.
• Shiny properties — set the channel routing and brightness offsets, and preview what the shiny will look like in the viewport.

Step 5 — Set the body map

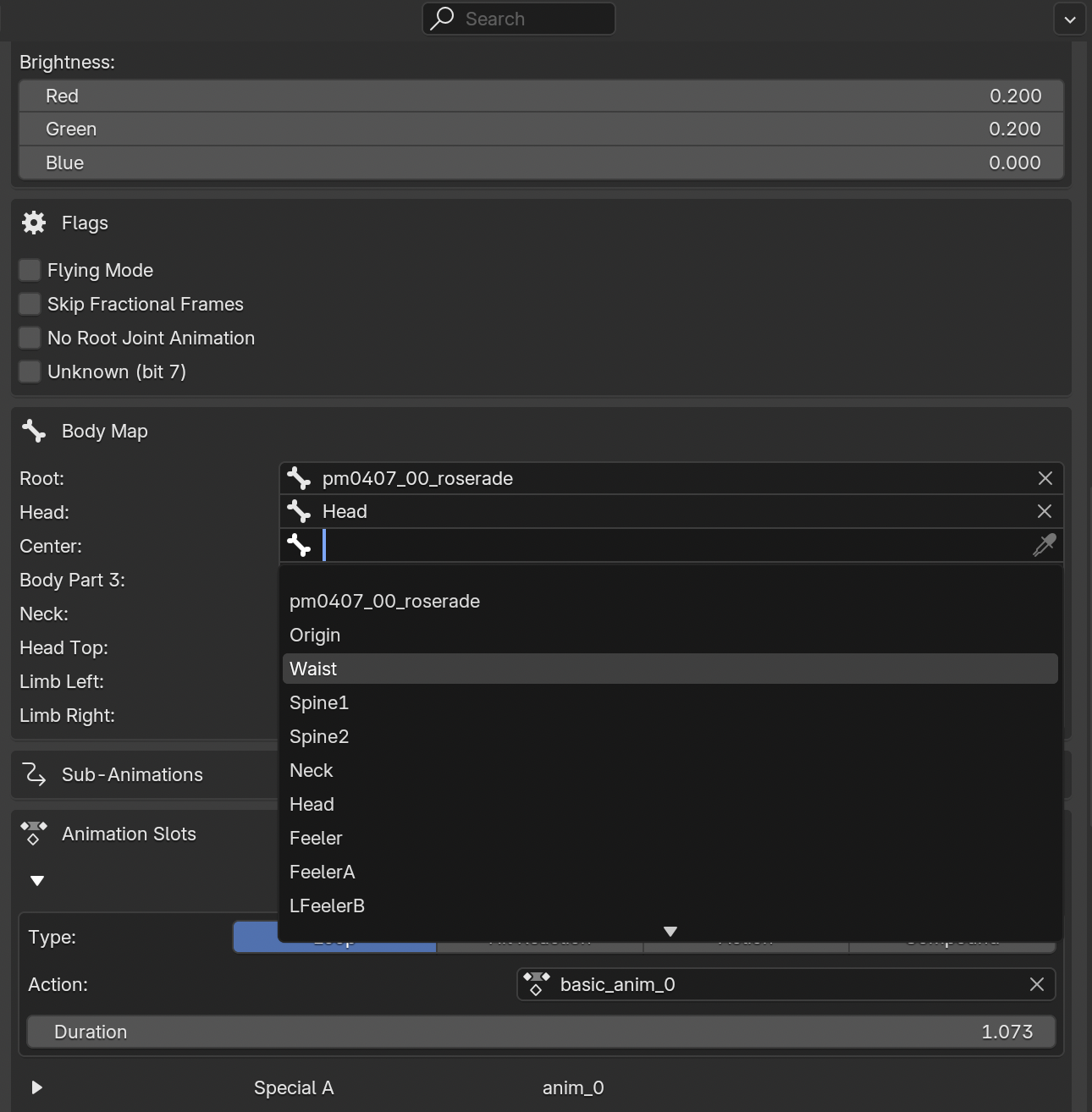

The body map is 16 named slots in the PKX header that the in-game waza-effect pipeline looks up to anchor particles, sound emitters, and overlay models on your Pokémon. Set these in the Body Map section of the PKX Metadata panel.

The most important slot to get right is the Head Bone field above the body map (a separate PKX header field used by the in-game camera for head-tracking) — and the body map's Mouth and Chest slots, since they anchor most of the visible move effects.

Step 6 — Assign actions to animation slots

Pokémon battle models have 17 animation slots. Each slot gets a Blender Action assigned to it.

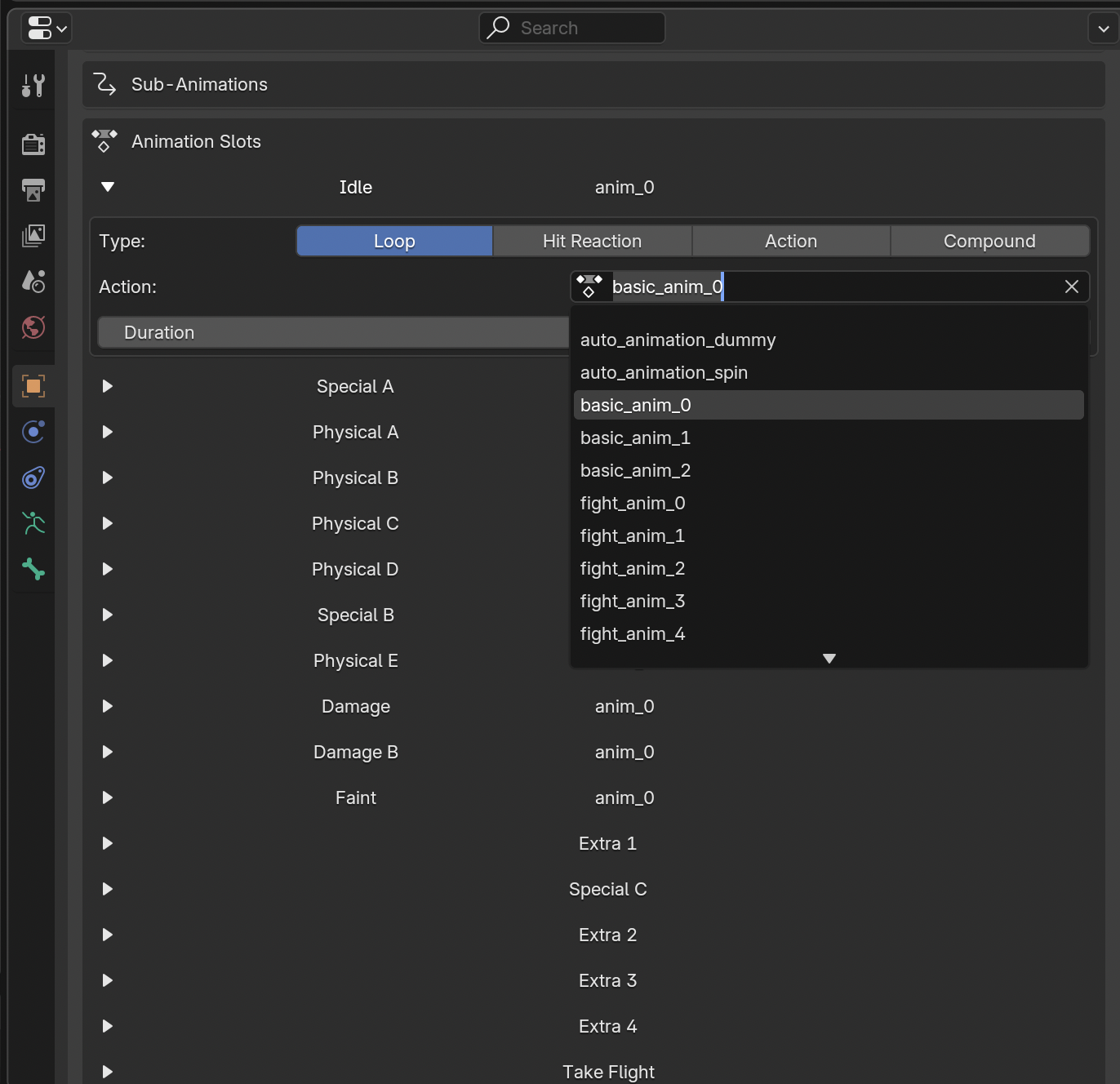

In the PKX Metadata panel, click the dropdown next to each slot and pick the matching Action.

Step 7 — Re-run the script

After assigning actions, run the script again. It auto-derives animation timing values from the action durations you assigned. The timings can be adjusted afterward if necessary, but in most cases the auto-assigned values should be fine.

6. Exporting the model

Once the scene is set up and prepared, the export itself is a single menu choice.

Step 1 — Open the export dialog

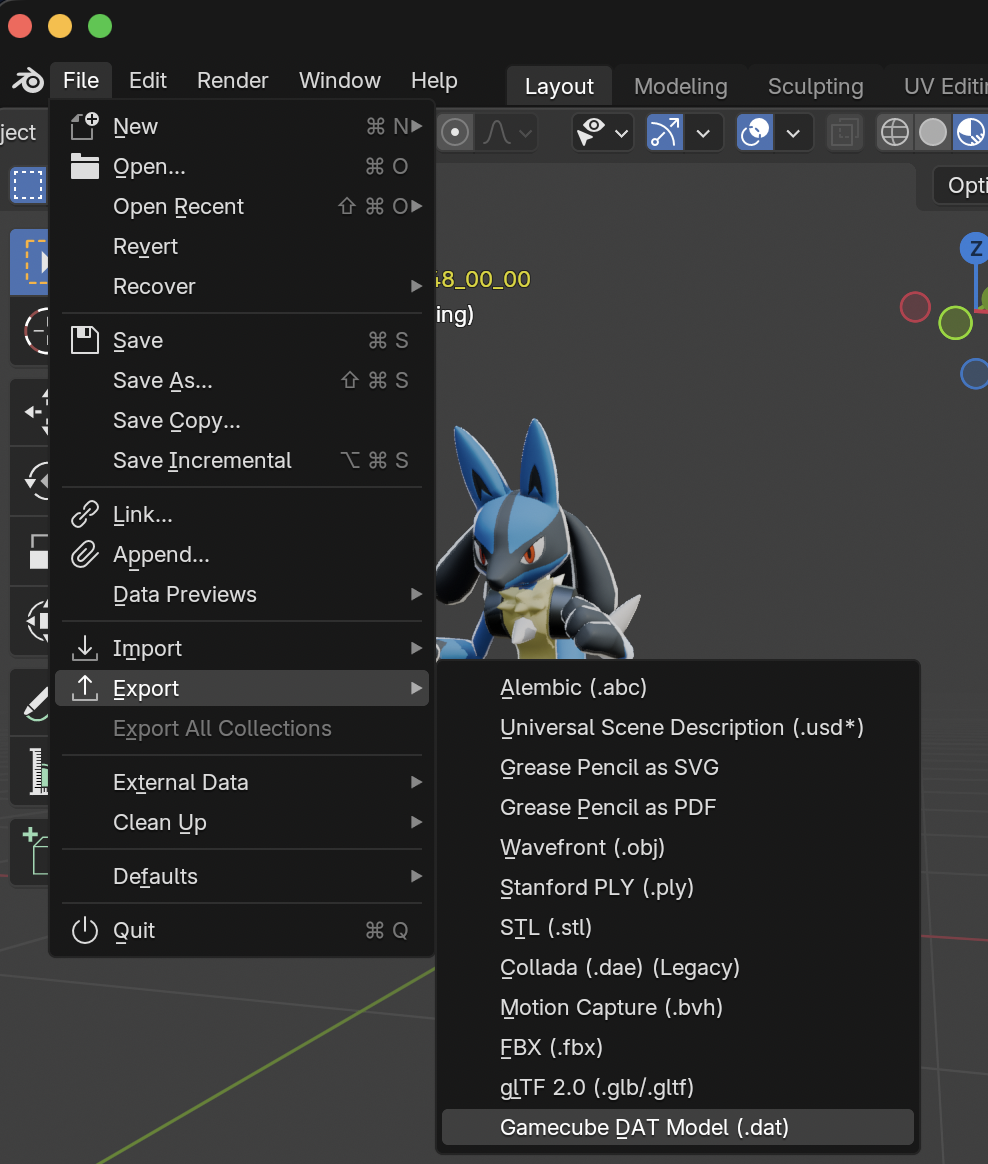

In Blender, open the File menu, hover over Export, and click Gamecube model (.dat).

Step 2 — Pick output format and location

Type the filename and choose the extension based on what you want:

Step 3 — Click Export

The export takes a few seconds. When it finishes, you'll have a usable model file at the path you chose. The next section covers getting it into the game.

Known limitations

• Map / scene models lose features the exporter doesn't yet support (fog, lighting, collision data).
• Particle (GPT1) effects are not exported.
• Optimisations automatically applied by the preparation script may create visual issues.

7. Importing the model back into the game

You have a model file. Now you need to get it back into a playable copy of the game. The flow uses Dolphin's "boot from folder" feature — no ISO rebuild needed — together with the project's browser-based FSYS Tool for swapping the model into an existing archive.

Step 1 — Extract the game's filesystem (one-time setup)

Follow the importer's file system extraction guide to extract the game's contents to a folder. If you already did this for the importer walkthrough, you can reuse the same folder.

Step 2 — Find the .fsys you want to replace

Inside the extracted folder, navigate to the files/ subfolder. Find the pkx_*.fsys archive for the Pokémon or trainer you want to overwrite.

Step 3 — Back up the original

Before overwriting anything, copy the .fsys file to a safe place. If your export doesn't work in-game, you can restore the original by copying the backup back.

Step 4 — Choose your replacement method

Pick whichever fits your situation:

Method A — Direct .fsys export from Blender (simplest)

If the archive you're replacing has exactly one model entry inside it (true for every pkx_*.fsys), Blender can write the modified archive in one step.

1. In Blender, run the export (step 6).
2. In the file dialog, navigate to the folder containing the .fsys you want to replace.
3. Double-click the existing file in the dialog — this picks it as the output target.
4. Click Export.

The plugin overwrites the archive in place, replacing the original model entry with yours and preserving every other entry in the archive.

Method B — Use the FSYS Tool (extract / swap / repack)

For archives with more than one model entry, archives where you want to inspect or modify other files alongside the model, or when you just prefer working with loose files, use the project's FSYS Tool. It runs entirely in your browser — no installation, no upload, everything stays local.

1. Export your model from Blender as .pkx (or .dat), not .fsys. Save it somewhere you can find it.
2. Open the FSYS Tool in your browser.
3. Switch to the Extract tab. Pick the .fsys archive you want to modify and click Extract archive. The tool downloads a .zip file — unpack it to get a folder containing every entry from the archive, plus a <name>-manifest.json describing the layout.
4. Swap the model. Inside the unpacked folder, find the entry file corresponding to the model (typically the .pkx or .dat file). Delete it and replace it with your exported model, keeping the exact same filename. The manifest doesn't need to be edited — only the file content.
5. Switch to the Repack tab. Drag the folder into the drop zone (or use the picker), set the output filename to match the original (e.g. pkx_065.fsys), and click Repack archive. A new .fsys downloads.
6. Drop it into the game's files/ folder, overwriting the original (which you already backed up in step 3).

Step 5 — Boot the modified game from main.dol

In your file browser, open the extracted folder, go into sys/, and double-click main.dol. Dolphin launches the game using your modified files — without needing to rebuild the ISO.

8. Troubleshooting

The model garbles in-game or has extra geometry radiating out from it

If the model loads in-game but renders as the correct body plus large flat planes, long thin triangles, or other geometry stretching off into space, the export is most likely pushing past one of the renderer's per-frame caps — too many surfaces (PObjects), too many bone-weight combinations, or too many matrices. XD's hardware has limits the importer and Blender don't enforce, so the file looks fine when re-imported but the game's draw loop chokes.

The prep script can produce a smaller, simpler model by collapsing similar bone weights together. The knobs that control how aggressive this is live as constants at the very top of scripts/prepare_for_pkx_export.py (and the same block at the top of prepare_for_dat_export.py):

• MAX_WEIGHTS_PER_VERTEX — how many bones can influence a single vertex. Hardware allows up to 4. Game models commonly use 2 or 3. Lower = fewer surfaces.
• WEIGHT_QUANTISATION_STEP — the granularity bone weights are rounded to. 0.1 matches the precision the game itself stores; 0.25 is much more aggressive. Larger = fewer surfaces.
• REDISTRIBUTE_SUB_THRESHOLD_WEIGHTS — when True, any bone weight below WEIGHT_DROP_THRESHOLD is removed and its slack handed back to that vertex's dominant bone. Useful for GLB/FBX rips with long tails of near-zero weights. Leave False for round-tripped game models.
• MAX_TEXTURE_DIM — maximum texture dimension on either axis; larger textures get downscaled proportionally. 512 is the practical safe ceiling for XD's texture-memory budget.

To diagnose, watch the export log (Blender's system console). Lines like splitting mesh 'X' (137 envelopes) into 42 PObjects tell you where the budget is going. Game-native bodies sit at around 8–15 PObjects per material; anything well above that on an arbitrary model is likely to garble.

A reasonable first escalation when the defaults don't fly is:

MAX_WEIGHTS_PER_VERTEX = 2
WEIGHT_QUANTISATION_STEP = 0.25
REDISTRIBUTE_SUB_THRESHOLD_WEIGHTS = True

Save the script, re-run it on the scene, and re-export. The splitting mesh … counts should drop substantially. If the largest mesh is still emitting 25+ PObjects after the tightest knobs, the source mesh itself is too dense for the renderer — apply a Decimate modifier to bring the face count down (Pokémon-sized models typically sit in the 600–1,500 face range), then re-prep and re-export.

Other problems

If you hit a problem the docs don't cover, ask on the community Discord: discord.gg/xCPjjnv. Include screenshots of your scene (Outliner + Material Properties at minimum), the exact error message Blender showed, and the model file you tried to export.
